Features:

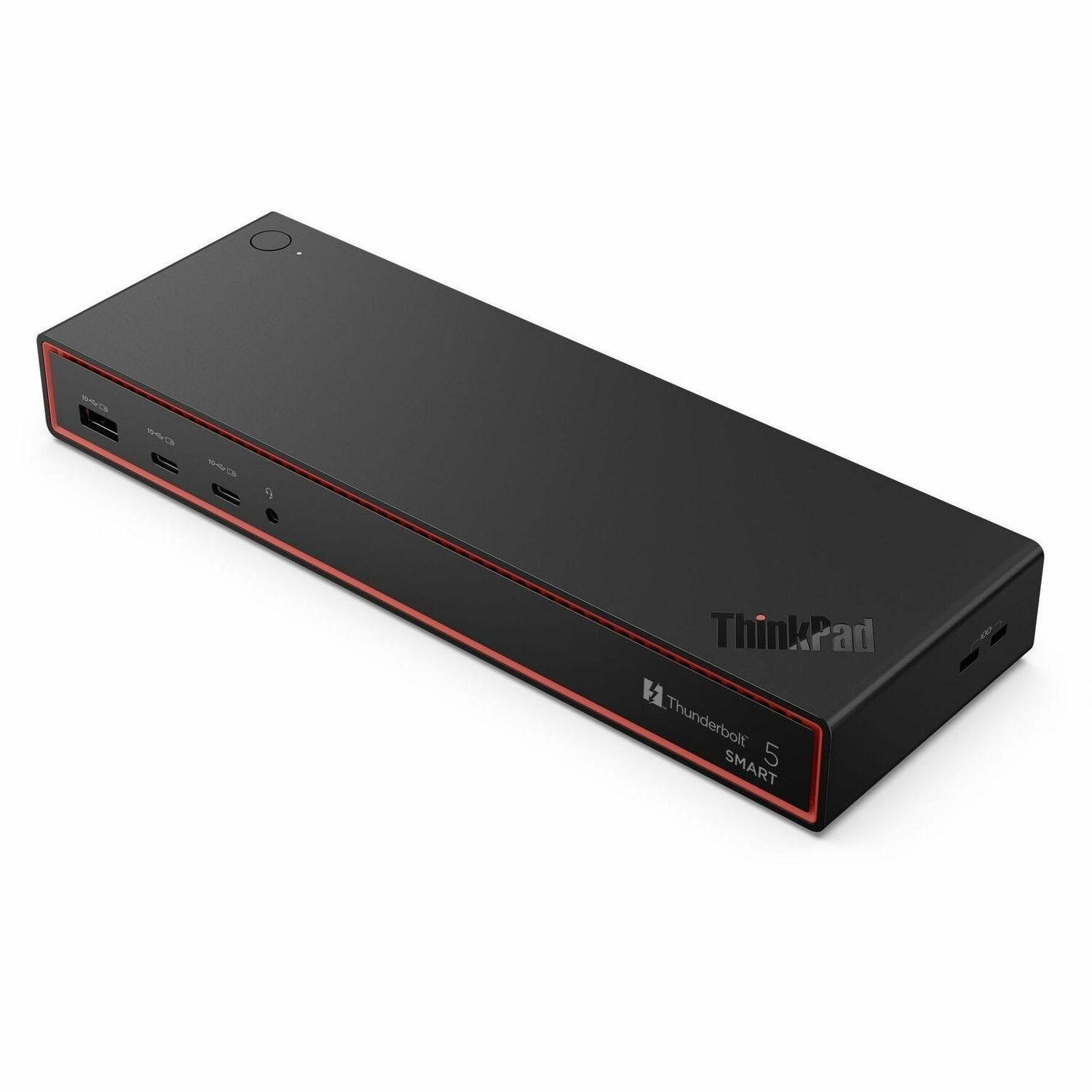

The ThinkPad® Thunderbolt™ 5 Smart Dock 7500 With the Cutting-Edge Thunderbolt™ technology, makes the connectivity performance reached a new Height, with up to 120 Gbps bandwidth, you can have up to 4 Ultra High Spec display setup, either it's three Ultra-High Resolution 8K 60Hz Displays and one High Resolution 4K 60Hz or two 4K 240Hz and two 4K 120Hz High Refresh Rate monitors setup, it's all up to you, fully extend your Mobile Workstation notebook to a Power Station with all different kinds of Peripheral Devices. It supports PD 3.1 and output up to 180W to give a rapid-charge to your notebook, you can drastically expand the potential of your workspace with ease.
General
Brand
ThinkPad
Mechanical
Color
Eclipse Black
Dimension
Packed Dimensions (L x D x H)
260 mm x 165 mm x 74 mm
Weight
585 g with Cable
Packed Weight
1730 g
Others
OS Requirements
Windows macOS Linux
Maximum Operating Temperature
40℃
Minimum Relative Humidity (%)
20%
USB Ports
Front: 1 x USB-A 3.2 Gen 2 (10 Gbps data, AOU 12W), 2 x USB-C data port (10 Gbps data, AOU 15W), Back: 2 x USB-A 3.2 Gen 2 (10 Gbps data, 10W), 2 x TBT 5, Full Function (15W)
Output Power
180W
Warranty Type
CRU
Warranty Period
3 Year
AC Plug
Yes
Input Power
265W
Depth
80 mm
Maximum Relative Humidity (%)
95%
Package Type
Brown Box
Ethernet
2.5 Gbps
Charging Port
USB-C
Physical Security Feature
Kensington Nano Lock, Kensington Micro Lock
Max Number of External Monitors
4
Height
30 mm
Agency Approvals
FCC/ICES, CE, KCC, RCM, BSMI, NCC, VCCI, CB, cULus, EAC, TUV-Mark, Ukraine DoC, NOM, IFT, TELEC, UKCA, VNTA, WPC ETA, SRRC, SDPPI, IMDA, SIRIM, NBTC, SUBTEL, KVALITET/RATEL, MCIT, ANRT, UCC, INACOM, CITRA, TRA, NTC, PSRC, ARTCI, INCM,Thunderbolt Cert, EVO
Video Ports
2 x DP 2.1, 1 x HDMI 2.1, 2 x TBT 5 Full Function
Refresh Rate
8K / 60 Hz
Minimum Operating Temperature
0℃
Length
235 mm
Driver Needed
Yes
Hardware Requirements
Systems with USB-C/Thunderbolt port
Power Delivery
PD 3.1
Power Button
Yes
Audio Ports
3.5 mm
Thunderbolt Port
2
